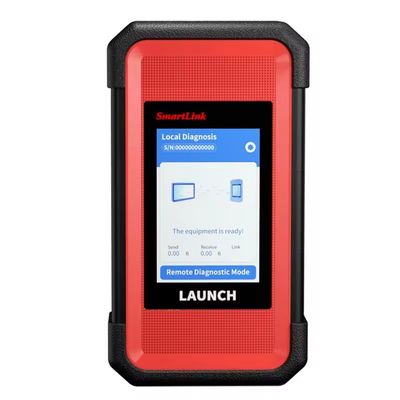

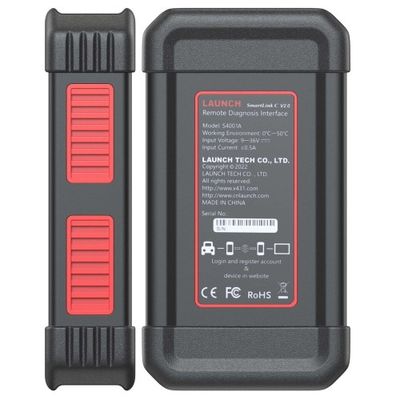

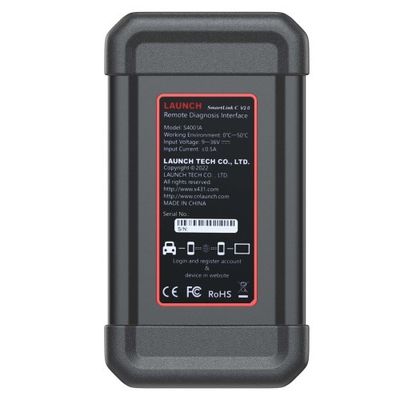

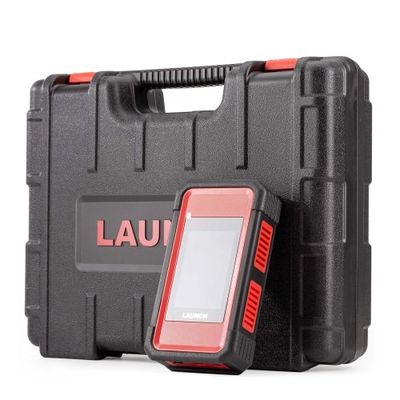

Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
| Luogo di origine | Cina |
|---|---|
| Marca | LAUNCH X431 |
| Numero di modello | per LAUNCH X431 SmartLink C 2.0 |
| Quantità di ordine minimo | 1 |
| Prezzo | $599 |
| Imballaggi particolari | 44cm*38cm*14cm / 4,6KG |
| Tempi di consegna | 1 giorno lavorativo |
| Termini di pagamento | T/T, Western Union, MoneyGram |
| Capacità di alimentazione | 1000 |
Contattimi gratis campioni e buoni.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome del modello | per LAUNCH X431 SmartLink C 2.0 | Origine | Cina continentale |
|---|---|---|---|
| Qualità | Superiore | Caratteristiche particolari | Bluetooth, Wifi. |
| Voltaggio | HD SmartLink C 2.0 | OEM NO. | LAUNCH X431 SmartLink C 2.0 Modulo per Veicoli Pesanti |
| Caratteristiche 1 | Lavorare come VCI (Vehicle Communication Interface) | Caratteristiche 2 | Funzionamento come dispositivo di passaggio locale J2534 |
| Caratteristiche 3 | Funziona come dispositivo remoto J2534 PassThru | Supporto 1 | Diagnosi completa dei problemi di sistema |
| Supporto 2 | Conformità con CAN/DOIP/CAN FDIJ2534 | Sostegno 3 | Leggere il codice, cancellare il codice |
| Supporto 4 | Lettura del flusso di dati | ||
| Evidenziare | Vehicle Data Link Connector Launch X431,Launch X431 SmartLink C V2.0 Diagnostic Device |
||
Descrizione di prodotto
Product Description
- Compatible with LAUNCH tools, OE tools or any other diagnostic tools
- Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
- Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
- SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
Launch SmartLink C V2.0 Remote Diagnosis Device
The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform.
Launch X431 SmartLink C Features
1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
2. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
3. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
4. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
Requires Activation card
SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.
Launch X431 SmartLink C Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.
SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.
How Does the LAUNCH SMARTLINK REMOTE DIAGNOSIS WORK?
This picture may help you better understand the complete procedure of the Smartlink remote diagnosis.
LAUNCH X431 SMARTLINK C TECHNICAL PARAMETERS
- 3.97“ Single-Touch Screen, 320 x 480
- Working Voltage: DC 9V ~ 36V
- Communication method: Ethernet
- Type B USB 2.0
- Storage: 8GB
- Memory: 256M
- Power Consumption: < 6W
- Working temperature: -10°C ~ 50°C
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 10% ~ 90%
- Dimension: 204 x 110 x 45 mm

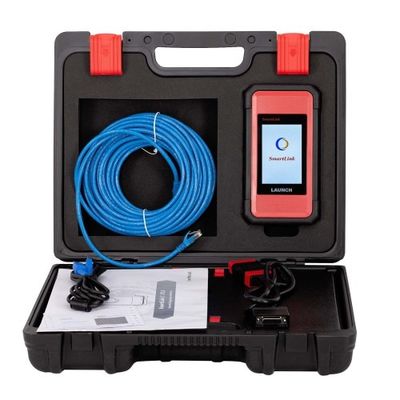

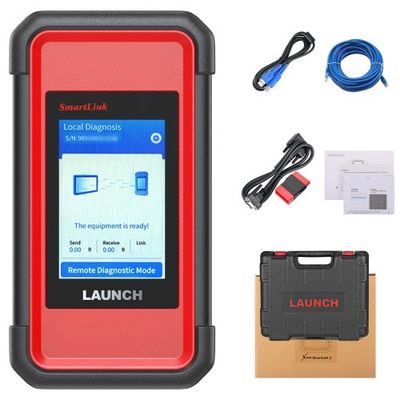

Launch X431 SmartLink C Packing List:
The following accessory items are for reference only. For detailed items, please consult with a local agency or check the packing list supplied with the device.
SmartLink C Dongle – For SmartLink Service Provider
OBD II Extension Cable – Connects the dongle to the VCI of the compatible diagnostic tool
CAT-6 Crossover Cable – Connects the dongle to the network modem
Power Adaptor – Supplies power to the dongle through an AC outlet.
