For MAN T427 DIAGNOSTIC TOOL TRUCK DIAGNOSTIC INTERFACE Parameter Programming Device WLAN Calibration Monitoring CF53 Laptop

For M-A-N T427 DIAGNOSTIC TOOL TRUCK DIAGNOSTIC INTERFACE Parameter Programming Device WLAN Calibration Monitoring + CF53 laptop

DESCRIPTION

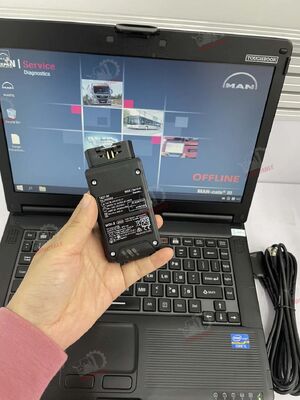

FOR MAN T427 original diagnostic & programming device is an external diagnosis system with the most extensive test depth for electrical systems in MAN commercial vehicles. This diagnosis system is ideally suited to use in a workshop as well as mobile usage. It is special dealer level diagnostic too for MAN trucks and it support both Diagnose and Offline programming.

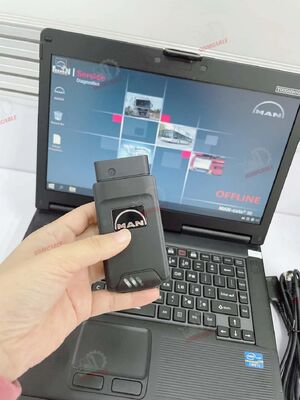

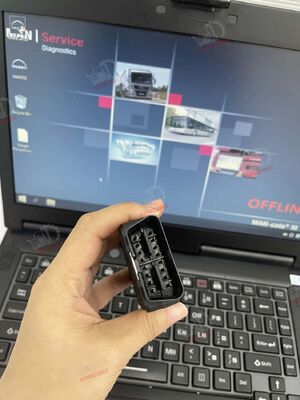

T472 (WDI-2) is universally applicable, mobile diagnostic interface used in development, production and workshops. The compact device establishes the communication between the ECUs of a vehicle and an external, PC-based diagnostic application. For that purpose, the T427 is plugged to the vehicle’s OBD connector and contacts the test computer alternatively via WLAN or tethered.

T472 support all current vehicle buses and diagnostic protocols as well as the D-PDU-API standard/PRODIS.PDU (ISO 22900-2):

• UDS on CAN.

• OBD on CAN und K line.

• KWP2000 on ISO-TP, TP2.0, TP1.6 and K line.

• KW1281 on TP1.6 and K line.

• SAE J1939.

• DoIP.

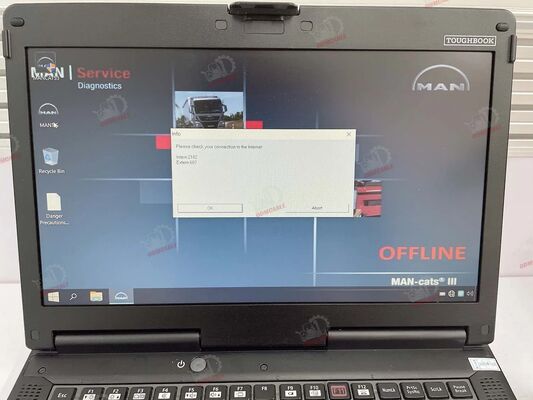

For MAN-cats III - MAN-computer assisted testing and diagnostic system. This special tool gives user the greatest possible test depth for vehicles, bus/coach chassis and engines for installation. The compact system is ideal for workshop use and mobile use. MAN-cats is mobile, easy to use and has durable components.

Supported all For MAN and Neoplan vehicles for:

• Diagnostic.

• Monitoring.

• Calibration.

• Tests.

• Parameter programming.

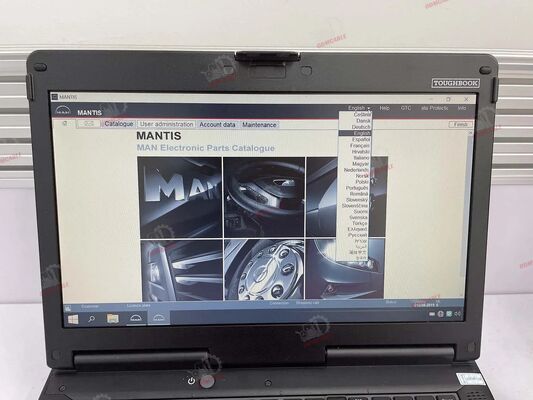

Supported languages: English, German, French, Italian, Spanish, Russian, Dutch, Polish, Swedish, Turkish, Czech, Portuguese, Romanian, Norwegian.

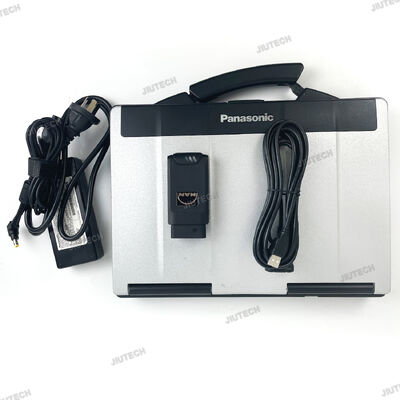

PACKAGE CONTAINS :
